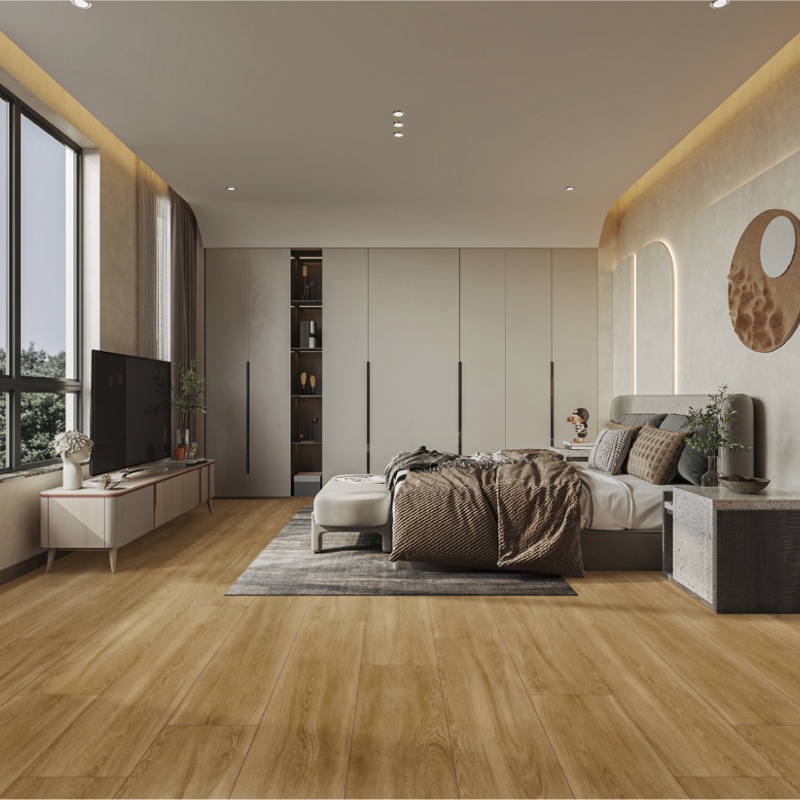

This 300x1800mm wood floor tile combines a realistic wood appearance with modern functionality. The brushed micro grip surface provides excellent slip resistance, making it an ideal choice for both high-traffic areas and wet zones. The deep ink printing ensures the tile maintains a rich, timber-like look that adds elegance to any room. Its long-lasting durability makes it perfect for residential or commercial use. Find this high-quality wood look tile at competitive prices from trusted suppliers, and enjoy the perfect balance of style and safety.
Color: | |
---|---|
SKU: | |
Availability: | |
Q301803GP
|
Specifications
Collections | Q301803GP |
Size(mm) | 300x1800mm |
Thickness(mm) | 10.2±0.2mm |
Materials | Porcelain |
Finishing | Brushed Mirco Grip with Deep Ink |
Pattern | 4 |
Style | Super Black Tile / Wood Look Tile |
Tile Body | Full Body |
Shape | Plank |
Application Place | Suitable for floors and walls in living rooms, bathrooms, kitchens, and commercial spaces. |
Loading Port | Foshan Port |
|
Implementation Standards
TECHNICAL SPECIFICATIONS
DESCRIPTION | STANDARD TEST | MEASUREMENT UNIT | ISO STANDARD REQUIREMENT | ![]() |
Length& Width | ISO 10545-2 | mm | ±0.5%Max | ±5.0%Max |
Thickness | ISO 10545-2 | mm | ±5.0% Max | ±5.0%Max |
Sides Straightness | ISO 10545-2 | mm | ±5.0% Max | ±5.0%Max |
Rectangularity | ISO 10545-2 | mm | ±0.6%Max | ±0.6%Max |
Flatness: a) Centre Curvature b) Edge Curvature c)Warpage | ISO 10545-2 ISO 10545-2 ISO 10545-2 | mm mm mm | ±5.0% Max ±5.0% Max ±5.0% Max | ±5.0%Max ±5.0% Max ±5.0% Max |
Surface Quality | ISO 10545-2 | One major area of tles | ≥95% free from visible defect | 95% free from visible defoct |
Water Absorption | ISO 10545-3 | Mass | ≤0.5% | 0.5% |
Modulus of Rupture | ISO 10545-4 | N/mm2 | ≥35N/mm2 | ≥35N/mm2 |
Deep Abrasion | ISO 10545-6 | mm3 | 175 mm3 | ≤175mm3 |
Surface Abrasion PEI ASTM C1027 | ISO 10545-7 | Visual Check | Manut. to state Abrasion Class,Cycle Passed | Manut. to state Abrasion Class,Cycle Passed |
Crazing Test | ISO 10545-11 | Visual Check | Not Applicable for porcelain tiles | Not Applicable for porcelain tiles |
Frost Resistance | ISO 10545-12 | Visual Check | Required | Required |
Chemical Resistance (Low Cons.) | ISO 10545-13 | Visual Check | Manuf.to state | Manuf. to state |
Chemical Resistance(Household/Swimming Pool) | ISO 10545-13 | Visual Check | Max Visible Change On Cut Side | Max Visible Change On Cut Side |
Stain Resistance | ISO 10545-14 | Visual Check | Class 3 Min | Class 3 Min |
Coefficient of Friction | ISO 10545-17 | Manuf.to state | Manuf.to state | Manuf.to state |
|
Production Pictures
Fineness Test of the Slurry
To check if the slurry particle size meet the requirement of spray drying.
Breaking Strength Test of Green Body
To make sure the green body is strong enough before glazing and printing.
Flow Velocity Test of Glaze
To determine if the glaze slurry is evenly grinded.
To test if the density of the glaze meet the requirement of formula.
To weigh the glaze applied on each tile and determine if it needs adjustment.
To check the flatness and squareness of each tile after rectifying via the state-of-art automatic machine.
To check the shade difference then sort them by shade number.
To check the status of the container and the details of loading.
|
Inspection Pictures
|
Packing and Loading
|
Projects
High-end villa in Cambodia Project Location: Cambodia Project Type: Villa Product Used: Travertine Porcelain Tile-180SQM | Apartment in Brunei Project Location: Brunei Project Type: Apartment Product Used: Colorful Terrazzo Tile-2000SQM | Kuwaiti Chain Bakery Project Location: Kuwaiti Project Type: Bakery Product Used: Cement Tile-400SQM |
|
